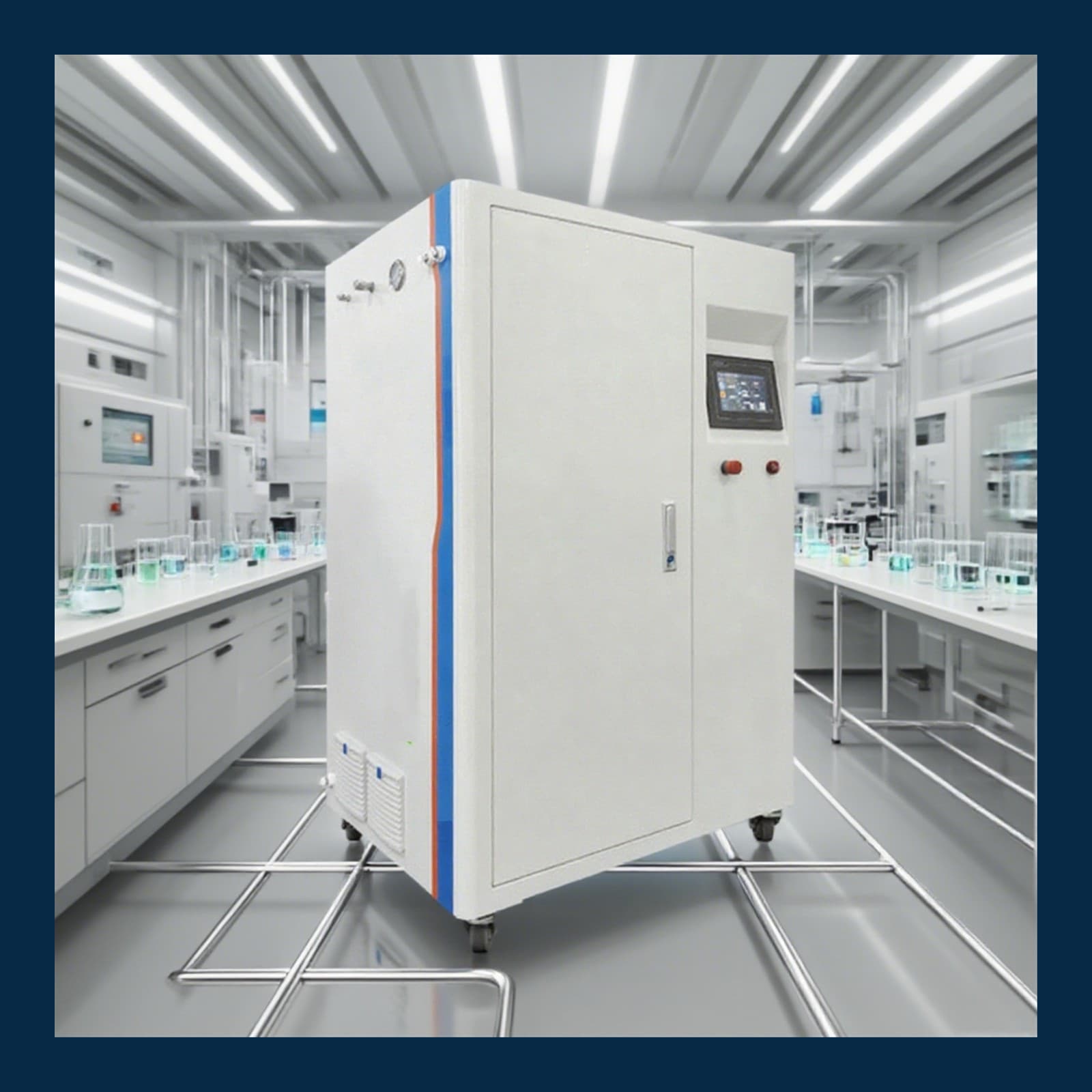

HB-0.6Nm3/h PEM Water Electrolysis Hydrogen Production System
Model VDHG-5N06-P3. Product information and technical parameters are matched to the current product information sheet.
0.9Nm3/hGas Production Rate
0.6Nm3/hHydrogen Production Rate
5-65 COperating Temperature
99.999%Hydrogen Purity
OVERVIEW
Product Information Matched to Your Model.
Glass manufacturing, metal smelting, cogeneration (CHP), semiconductor industry, integrated multi-energy independent microgrids
- Model-specific listingVDHG-5N06-P3 is shown with its assigned source image and parameters.
- Technical dataAll published values below come from the current product information sheet.
SPECIFICATIONS
Technical Parameters
Gas Production Rate0.9Nm3/h
Hydrogen Production Rate0.6Nm3/h
Operating Temperature5-65 C
Hydrogen Purity99.999%
Dew Point-70 C
Maximum Withstanding Pressure3.0MPa-35MPa optional
Power Supply Voltage110V-380V optional
DC Power Consumption4.4kW*h/Nm3 H2
Wide Power Range20-120%
Feed Water QualityASTM D1193 Type I Deionized Water (>10 Mohm*cm)
Dimensions1100*800*1600mm
Weight270kg
Parameters are transcribed from the English product information sheet for VDHG-5N06-P3.
PRODUCT SUPPORT
Information Available for This Model.
Parameter Data
Technical values are listed from the source sheet.
Application Data
Listed applications are included below.
Source Reviewed
Published details are kept within the supplied materials.
Inquiry Ready
Use the inquiry form for a project discussion.
Catalogue Access
Product catalogue resources are available on request.
APPLICATIONS
Listed Applications
Application 1
Glass manufacturing
Application 2
metal smelting
Application 3
cogeneration (CHP)
Application 4
semiconductor industry
Application 5
integrated multi-energy independent microgrids
